Description
Core Technical Specifications

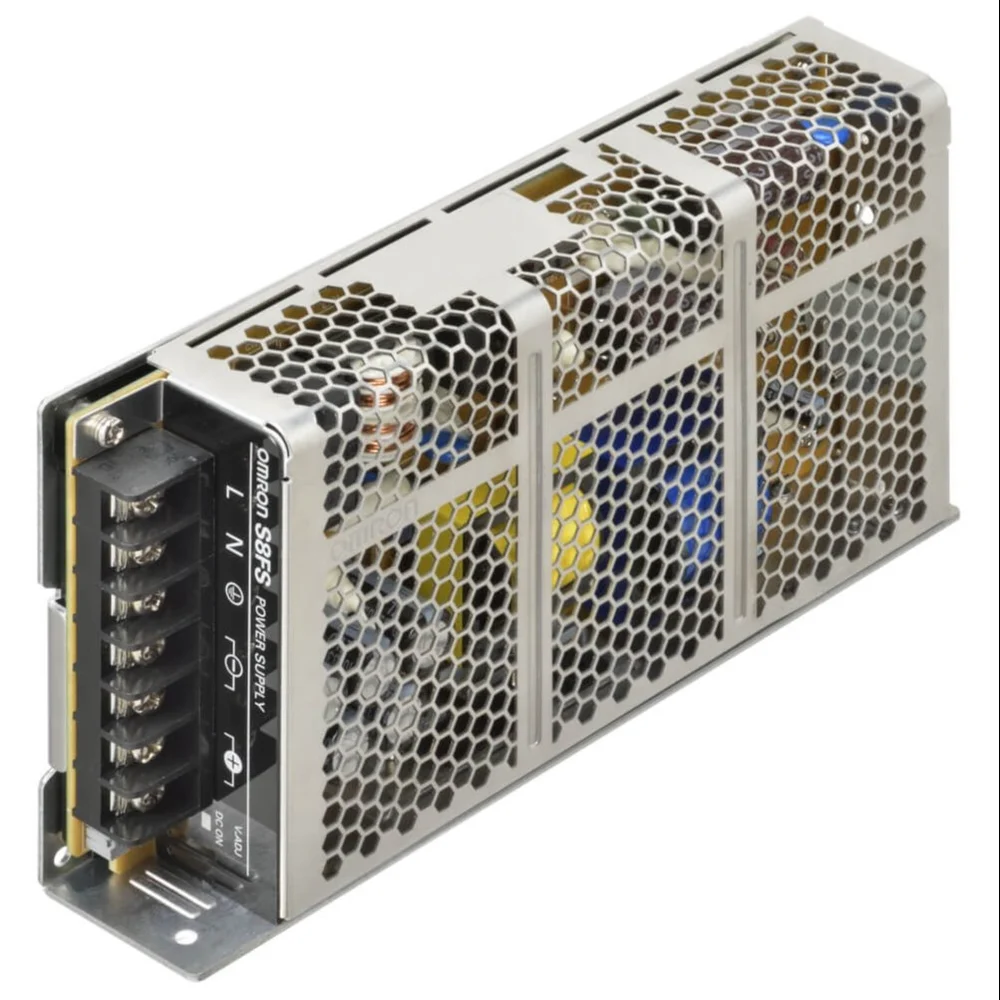

According to data sheets from Omron Europe and Element14 India, this unit features the following core specifications:
-
- Output Voltage: 24 VDC
- Output Current: 6.5 A
- Power Rating: 150 W
- Input Voltage Range: 100 to 240 VAC (Allowable range: 85 to 264 VAC or 120 to 370 VDC)
- Efficiency: 87% typical at 230 VAC input
- Cooling: Natural air cooling (No built-in fan required)
- Terminal Type: Screw terminal block facing forward [1, 2, 3, 4, 5, 6, 7]
Key Structural Features
- Industrial Durability: Built with a rugged steel frame to withstand harsh factory automation environments.
- Long Service Life: Uses high-quality Japanese 105°C electrolytic capacitors, offering a minimum life expectancy of 10 years.
- Circuit Protection: Built-in protection against overvoltage, overcurrent, and short circuits.
- Flexible Mounting: Supports direct panel mounting and can easily snap onto standard DIN rails using an external mounting bracket.
- Compliance Standards: Conforms to global certification standards including CE, UL, and RoHS safety regulations. [1, 2, 3, 4, 5, 6]
