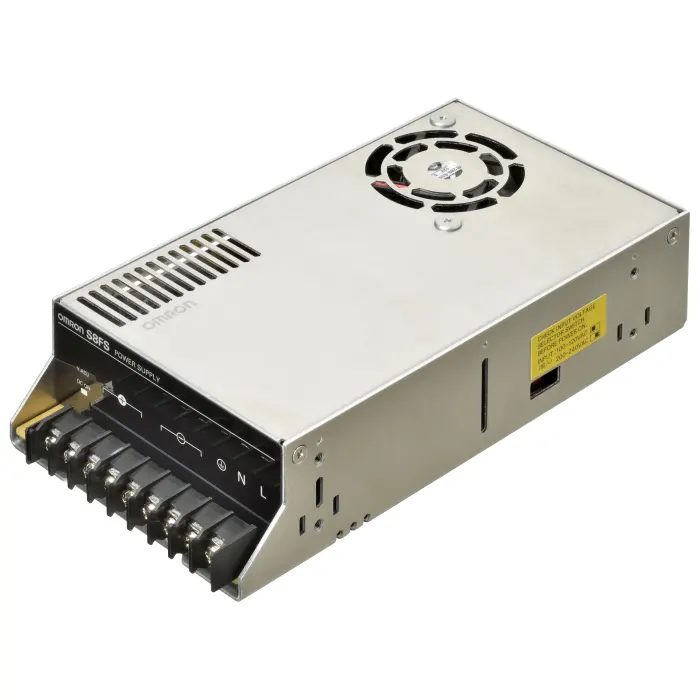

OMRON SMPS S8FS-C35024J (24V DC output at 14.6 Amps)

Description

• • Output Power: 350 Watts
  • Output Voltage: 24V DC
  • Rated Output Current: 14.6 Amperes
  • Allowable AC Input Range: 90 to 264 VAC (Single Phase)
  • Allowable DC Input Range: 254 to 373 VDC
  • Efficiency: 88%
  • Cooling: Built-in cooling fan [1, 2]

• • Terminal Type: Forward-facing screw terminal block for clean wiring.
  • Dimensions: 112.5 mm Width × 50 mm Height × 212 mm Depth.
  • Mounting Method: Direct bottom or panel mounting by default (DIN-rail mounting is possible using the optional S82Y-FSC350DIN bracket accessory). [1, 2, 3]

• Abnormal Voltage Resistance: Enhanced resistance to severe input fluctuations and lightning surges.
• Industrial Build: Built with premium Japanese 105°C electrolytic capacitors to guarantee an extended service life.
• Standard Machinery Utility: Widely implemented to drive PLC controllers, industrial sensors, actuators, and highly specialized automation equipment like rice color sorters. [1, 2, 3]
