Description

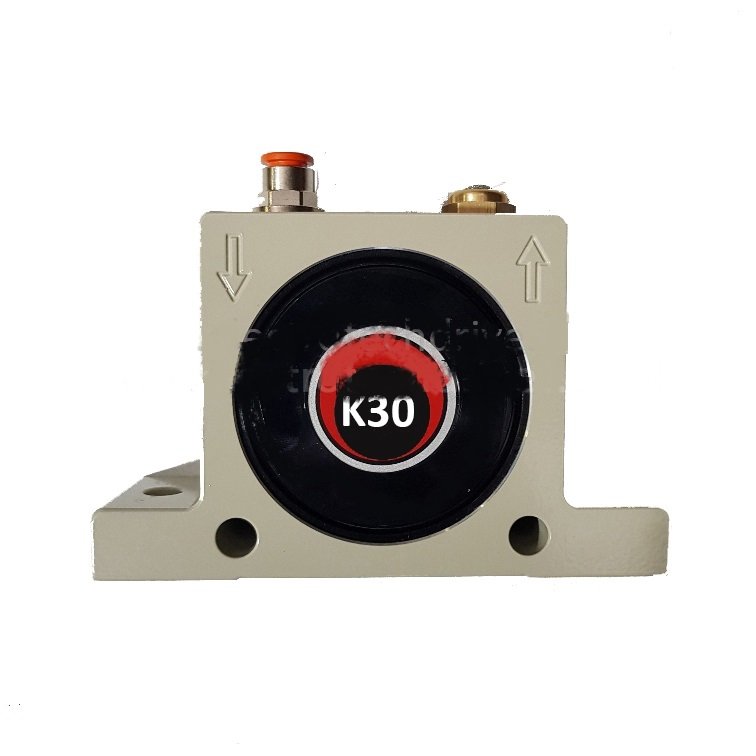

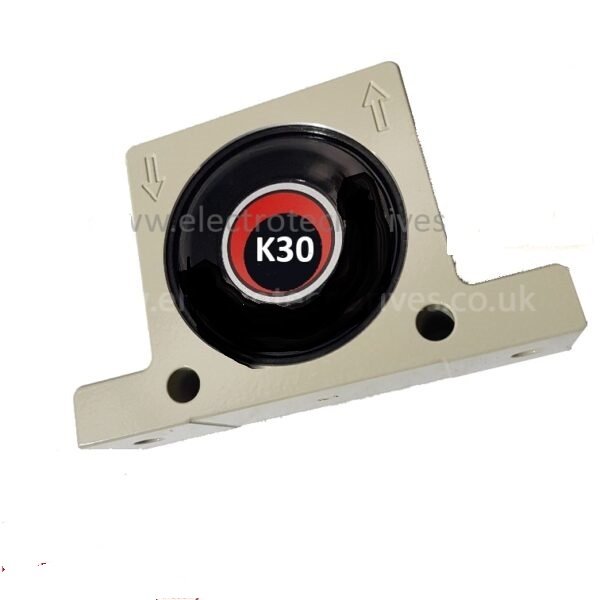

K30 Ball Vibrator
K Range Ball vibrators, simple and good. Wide range for many applications as below.
- Emptying of Bunkers
- Screen Filters
- Vibrating Tables
- Preventing adhesion’s in pipelines and silos
- Moving of goods
Properties
- Powerful
- Aluminium Body
- Rotary Vibrator
- 2 Sets of mounting holes
- Frequency / Force adjustable by air pressure
- Suitable for temperature up to 100C
- Force 130 N to 4050 N
- Rated Frequency 7300 to 35000rpm
Construction
- Vibration by means of a ball that is guided by hardened steel guides
- Nylon plates on both sides to support the ball and as protection from dust and water
- Housing with 4 mounting bores, depending on the application
