₹5,500.00Original price was: ₹5,500.00.₹4,800.00Current price is: ₹4,800.00.

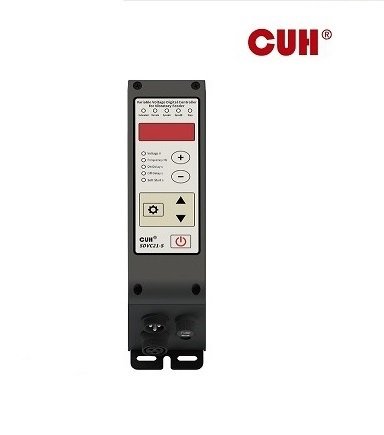

CUH SDVC21-S VIBRATOR CONTROLLER
Product Specifications
Protection Level IP67
Frequency (MHz) Hertz (HZ)
Rated Voltage Volt (V)
Energy Consumption Energy
Dimension(L*W*H) Millimeter (mm)
Weight Grams (g)
Product Description
Features
Soft Startup : In order to avoid sudden shock to the feed material and vibratory feeder, the controller can gently increase output voltage from 0 to the preset value when startup.
Preset Speeds : 4 preset feed speeds can be stored and output by external short-circuit signal.
Remote ON/OFF Control : The controller has 2 groups of ON/OFF control pins. Switch sensor or PLC can be connected to them to turn on/off the controller.
Photoelectric ON/OFF Control : The CUH Intelligent Photoelectric Sensor can be connected to turn on/off the controller.
Remote Speed Control : Output Voltage of the controller can be adjusted remotely by an external potentiometer, a PLC, or a 1-5V DC signal.
DC Control Output: The controller can output low voltage DC power associated with logical relation setting of the ON/OFF Control to drive a solenoid, an electrical relay or other external devices.
Overheat Protection : If internal temperature of the controller gets too high, the controller will stop its output to protect itself.
Overcurrent Protection: If output current exceeds its rated value by mis-operation, the controller will stop its output to protect the
controller and vibratory feeder.
Short-Circuit Protection: If output of the controller is short-circuited, the fuse inside the controller will be blown to protect the controller and vibratory feeder from further damage.
Product Description
Features
Soft Startup : In order to avoid sudden shock to the feed material and vibratory feeder, the controller can gently increase output voltage from 0 to the preset value when startup.
Preset Speeds : 4 preset feed speeds can be stored and output by external short-circuit signal.
Remote ON/OFF Control : The controller has 2 groups of ON/OFF control pins. Switch sensor or PLC can be connected to them to turn on/off the controller.
Photoelectric ON/OFF Control : The CUH Intelligent Photoelectric Sensor can be connected to turn on/off the controller.
Remote Speed Control : Output Voltage of the controller can be adjusted remotely by an external potentiometer, a PLC, or a 1-5V DC signal.
DC Control Output: The controller can output low voltage DC power associated with logical relation setting of the ON/OFF Control to drive a solenoid, an electrical relay or other external devices.
Overheat Protection : If internal temperature of the controller gets too high, the controller will stop its output to protect itself.
Overcurrent Protection: If output current exceeds its rated value by mis-operation, the controller will stop its output to protect the
controller and vibratory feeder.
Short-Circuit Protection: If output of the controller is short-circuited, the fuse inside the controller will be blown to protect the controller and vibratory feeder from further damage.
Technical Specifications
ITEM
Range
Unit
Description
Min
Max
Input voltage
85
260
V
AC RMS Value
Output voltage
0
260
V
Less than Input voltage
Output Current
0
6
A
Output Frequency
50/100
Hz
Mains Frequency is 50Hz
60/120
Hz
Mains Frequency is 60Hz
OutPut Power
0
1320
VA
Output Waveform
Tangent Sine
Viltage Adjestment Accuracy
1
v
ON/OFF delay
0
20
s
ON/OFF Delay Accuracy
0.1
s
Soft Startup Time
0
10
s
DC Control output Voltage
22
26
V
DC output associated with ON/OFF control
DC Control output current
0
200
mA
Stand by Power Consumption
1.5
3
w
Display Method
5
Digit
LED Digital Tube
Control Method
1-5
V
Remote Speed
Control Voltage
Standard TTL Electric Level
Switching Signal
/
6 Buttons + LED screen
Work Space
Temperature
-10
60
°C
Non-Condensing
Work Space Humidity
10
85
%v
